Speaker Kit, 6.5" Kick Panel, 2021+ BRONCO

Regular Price
$279.99
Sale Price
$279.99
Regular Price
Sold Out
Unit Price
per

Install Kit: Speakers Only

22-3002-C00802A
- +

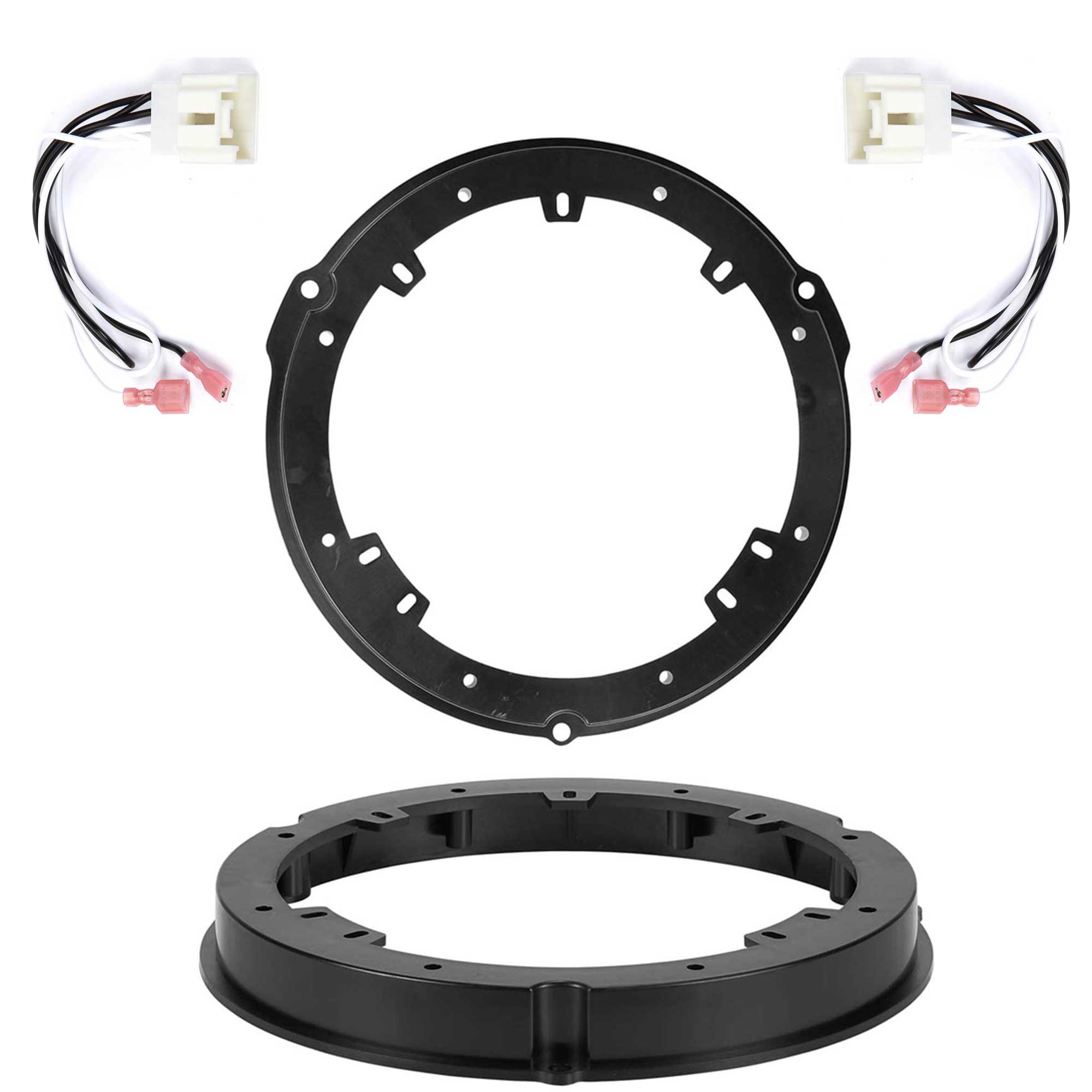

Upgrade your 21-22 Bronco front kick panel speakers with this Audison AP6.5 speaker set. With the optional Bronco plug-n-play kit, this kit includes 2 Audison AP6.5 Prima speakers with factory connector harness and speaker ring set. No need to cut, splice or solder the factory wiring harness when using this kit.

  • Audison AP6.5 210W speakers for dash with included adapter rings and 4-way factory connector harnesses

Fits all 2021-22 Ford Bronco base models (Base, Big Bend and Black Diamond) equipped with the factory 6-speaker system.

Audison AP 6.5 Ω2 Prima Woofer Speaker Set

AP 6.5 Ω2 woofer has been developed with 2Ω nominal impedance with the purpose of exploiting all the power made available by the AP8.9 bit amplifier capable of 65W into a 2Ω load.

To maximize the woofer efficiency achieving 95 dB, a 25 mm diameter 10 mm winding height coil, so a more lightweight coil, has been employed, at the same time also providing a linear excursion 2.8 mm higher than the one of AP 6.5 (4Ω), therefore ensuring high SPL values with minimum distortion even at high listening levels.

To extend the woofer’s frequency range down to low frequencies up to 50 Hz a 75 Hz resonance frequency has been chosen, achieving excellent low frequency output even without the use of a subwoofer.

Comp
Woofer
Size 165mm (6.5")
Power Handling 210W Peak
Impedance 2 Ohm
Frequency Response 60 ÷ 5k Hz
Sensitivity 95 dB/Spl
Magnet High density flux ferrite
Dome Water-repellent treated paper cone

audison Logo Authorized Internet Dealer

 AP AP 6.5 Ohm2 Tech Sheet

Details

Upgrade your 21-22 Bronco front kick panel speakers with this Audison AP6.5 speaker set. With the optional Bronco plug-n-play kit, this kit includes 2 Audison AP6.5 Prima speakers with factory connector harness and speaker ring set. No need to cut, splice or solder the factory wiring harness when using this kit.

  • Audison AP6.5 210W speakers for dash with included adapter rings and 4-way factory connector harnesses

Fits all 2021-22 Ford Bronco base models (Base, Big Bend and Black Diamond) equipped with the factory 6-speaker system.

Audison AP 6.5 Ω2 Prima Woofer Speaker Set

AP 6.5 Ω2 woofer has been developed with 2Ω nominal impedance with the purpose of exploiting all the power made available by the AP8.9 bit amplifier capable of 65W into a 2Ω load.

To maximize the woofer efficiency achieving 95 dB, a 25 mm diameter 10 mm winding height coil, so a more lightweight coil, has been employed, at the same time also providing a linear excursion 2.8 mm higher than the one of AP 6.5 (4Ω), therefore ensuring high SPL values with minimum distortion even at high listening levels.

To extend the woofer’s frequency range down to low frequencies up to 50 Hz a 75 Hz resonance frequency has been chosen, achieving excellent low frequency output even without the use of a subwoofer.

Comp
Woofer
Size 165mm (6.5")
Power Handling 210W Peak
Impedance 2 Ohm
Frequency Response 60 ÷ 5k Hz
Sensitivity 95 dB/Spl
Magnet High density flux ferrite
Dome Water-repellent treated paper cone

audison Logo Authorized Internet Dealer

 AP AP 6.5 Ohm2 Tech Sheet
