Dash Speaker Kit, 2021+ BRONCO

Regular Price
$249.99
Sale Price
$249.99
Regular Price
Sold Out
Unit Price
per

Install Kit: Speakers Only

22-3002-C00801A
- +

Upgrade your 21-22 Bronco dash speakers with this Audison AP2 speaker set. With the optional Bronco plug-n-play kit, this kit includes 2 Audison AP2 Prima speakers with factory connector harness and mounting plates. No need to cut, splice or solder the factory wiring harness when using this kit.

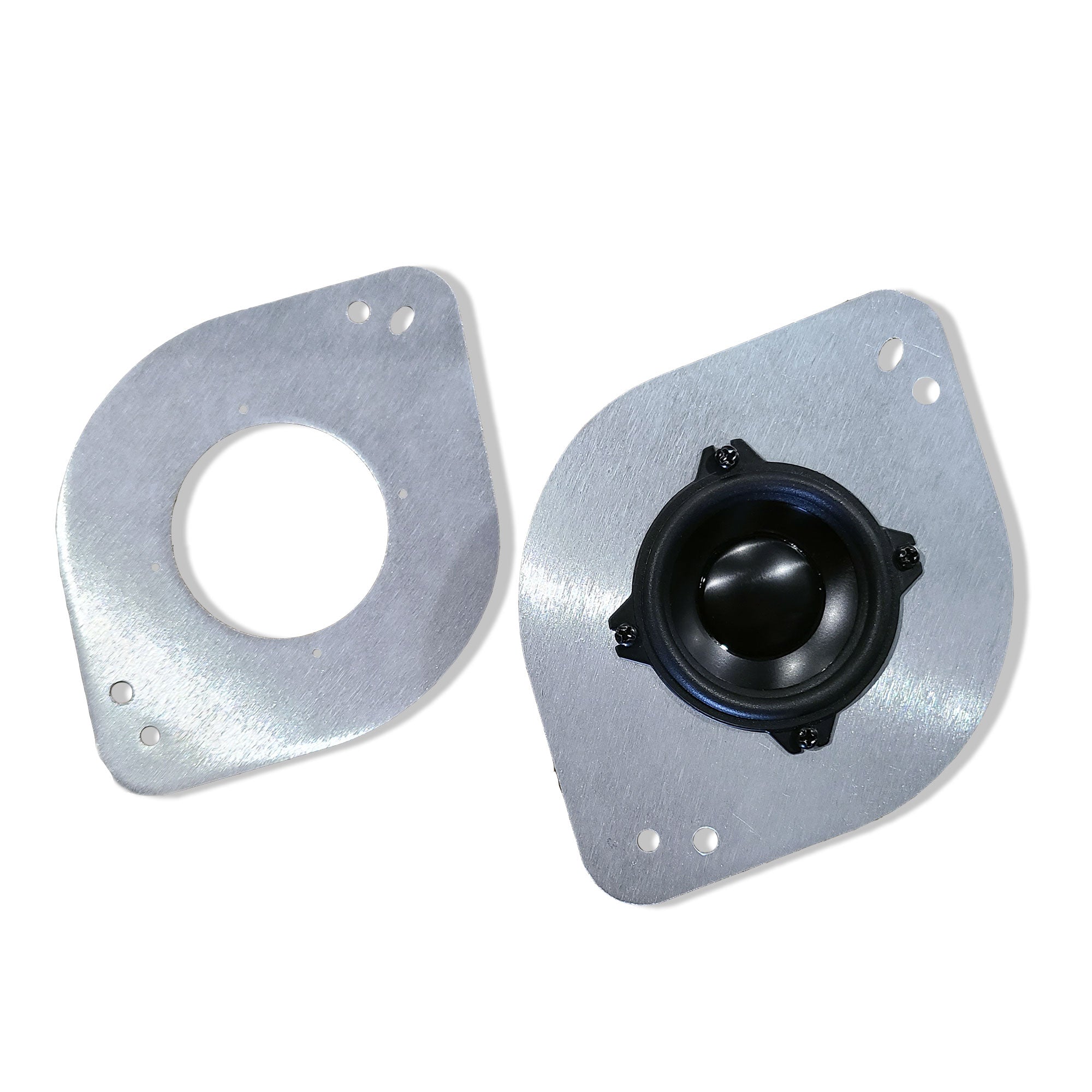

  • Audison AP2 50W speakers for dash with included mounting brackets and factory connector harnesses

Fits all 2021-22 Ford Bronco base models (Base, Big Bend and Black Diamond) equipped with the factory 6-speaker system.

Audison AP2 Prima 3-way Midrange Speaker Set

Prima AP 2 wide range reproduces the entire range of mid and high frequencies and has a compact size and excellent electroacoustic parameters make it ideal also to be used as a midrange in 3-way systems, as a surround speaker or as a central channel, housed in OEM placements, where the space requirements would not allow the use of a speaker with a larger diameter.

The advantage of emitting the entire spectrum of frequencies by itself, responsible for creating the virtual stage with absolute phase coherence, ensures a wide acoustic scene concentrated in the upper side of the dashboard. The very low distortion and the lack of crossover point in the mid-high range also provides a natural and pleasant listening experience.

Through careful research and simulation, the R&D team was able to maximize electroacoustic performance for a typical OEM application.

The resonance frequency of 145 Hz, a very low value for a 50 mm (2 in.) loudspeaker, was obtained thanks to the use of a 25 mm (1 in.) voice coil, ensuring a controlled extension at low frequencies for an optimal crossover point with the woofer.

The aluminum cone, in combination with the copper shorting ring that flattens the impedance, allows for the response to be extended up to 20 kHz. The special magnetic group made with double symmetrical Neodymium magnet also contributes to achieve this exceptional extension at high frequencies while maintaining very compact dimensions.

This electroacoustic configuration has led to obtain a particularly wide frequency response, which extends from 150 Hz up to 20 kHz, giving the AP 2 the well-deserved name of wide range.

Comp
Wide Range
Size 50mm (2")
Power Handling 50W Peak
Impedance 4 Ohm
Frequency Response 150 ÷ 20k Hz
Sensitivity 84 dB/Spl
Magnet Neodymium
Dome Aluminium

audison Logo Authorized Internet Dealer

 AP 2 Tech Sheet
